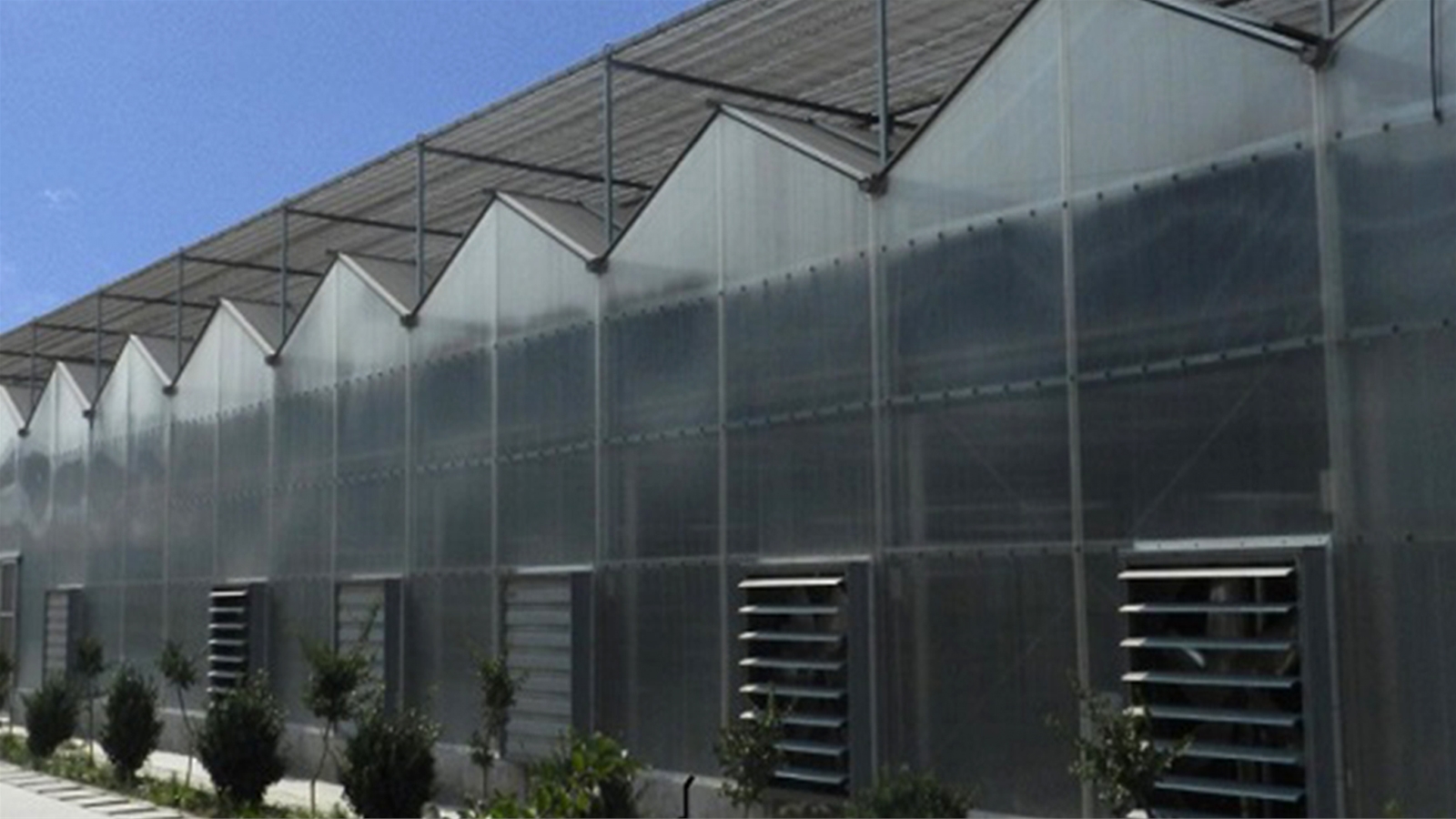

Outside Shading System:

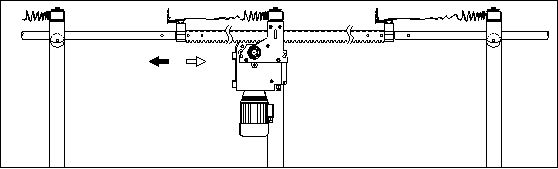

The outside shading system is composed of a sunshade curtain, transmission mechanism and power device, system support and other fixed parts, using A type gear rack curtain form principle is shown below.

The outside shading system can adjust the light intensity to improve the ecological environment in the greenhouse, the summer sun shading screen according to the different shading rate can block sunlight, and the diffused sunlight into the interior part, in order to protect the crops for uniform irradiation

The object is protected from strong light burns, while the greenhouse temperature is reduced.

The sun shading screen system is a screen supporting line system, that is, the installation of the sun screen hanging on the screen line, the screen line to bear all the weight of the screen.

Support line with black polyester thread, diameter φ2.6mm, tensile strength 270kgf, horizontal spacing along the span direction, 0.5m.

Use circular knitting silk curtains, the width is 4.3m
